Sanitary Belt Conveyor

Product Information for Sanitary Belt Conveyor

The CFB-200 is sanitary stainless steel belt conveyor. It is ideal for transporting packaged goods and features a low profile frame and pulleys with optional rolling nose bar.

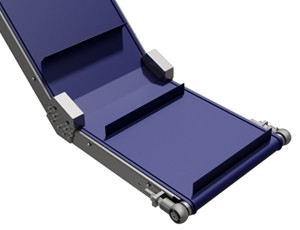

Also included in this product category are the CCB-200 which is a sanitary stainless steel belt conveyor and the CIC-200 which is an incline or z-frame conveyor of the same construction.

Conveyor Features:

• Drive Pulley Diameter: 2 in.
• Width: 2 to 36 in., in 2 in. increments
• Length: up to 48 ft.
• Load: Up to 450 lbs.
• Speed: Up to 250 fpm; Constant or Variable speed options
• Motors: Standard industrial motors
• Belting: All FDA approved, in a variety of finishes and colors

Catalogs, Resources & Downloads for Sanitary Belt Conveyor

• Brochure, CleanMove (8.6mb)

Technical Specifications for Sanitary Belt Conveyor

• Constructed out of 304 stainless steel
  • Features a #4 finish on external surfaces
  • Bolted construction
• All FDA approved belting
• Belt width is 1 in. less than the frame width
• Stainless steel maintenance free bearings
• Crowned pulleys for easy belt tracking
  • Optional v-guided belts
  • NOTE: v-guides are standard in lengths over 30 ft.
• Available in end and mid-mount drives
• Optional rolling nosebar idler, on non-cleated belt conveyors
• All conveyor lengths are per customer requirements
• A large collection of accessories including side rails and stands
