Cleated Belt Conveyor

mk Part Number: CCB-600

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Cleated Belt Conveyor

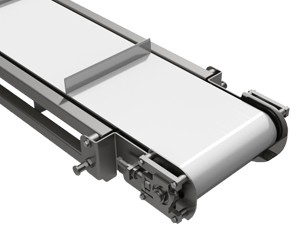

The CFB-600 is a sanitary, stainless steel conveyor. It is ideal for transporting meat, fish, poultry and dairy products as well as operating in highly sanitary environments.  The cleated belt is ideal for incline conveying and product separation.

Conveyor Features:

  • Drive Pulley Diameter: 4 in.
  • Width: 4 to 36 in., in 2 in. increments
  • Length: up to 60 ft.
  • Load: Up to 300 lbs.
  • Speed: Up to 250 fpm; Constant or Variable speed options
  • Motors: Stainless steel motors and reducers
  • Belting: All FDA approved, in a variety of finishes and colors
  • Cleats: 0.25 to 3 in. tall

Catalogs, Resources & Downloads for Cleated Belt Conveyor

Technical Specifications for Cleated Belt Conveyor

  • Constructed out of 1-½ in. square tube 304 stainless steel
    • Features a #4 finish on all surfaces
    • Continuous non-pitted welded construction
    • ½ to 1-in. standoffs, welded
  • 3-A sanitary design guidelines
  • All FDA approved belting
  • Belt width is 4 in. less than the frame width
  • Stainless steel bearings with FDA approved solid lubricant
  • Crowned pulleys for easy belt tracking
    • Optional v-guided belts
    • NOTE: v-guides are standard in lengths over 30 ft.
  • Available in end drive configurations
  • All tails are "tip up" style for easy belt cleaning
  • All conveyor lengths are per customer requirements
  • A large collection of accessories including side rails and stands
